Zaha Hadid: Bahrain Museum Of Contemporary Art

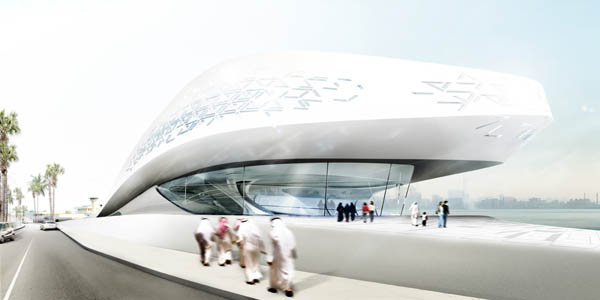

Iraqi architect Zaha Hadid created a unique organic form for Bahrain museum of contemporary art, to promote the artistic and cultural reality of this small Kingdom in the middle east,  and an excellent opportunity for artists to show their work.

Zaha Hadid Bahrain Museum 01

Zaha Hadid’s Bahrain Museum project will consist of  Exhibition space for permanent and temporary collections, performance space auditorium, education facilities, studios (artist in residence), offices, cafe, restaurant, museum’s retail.

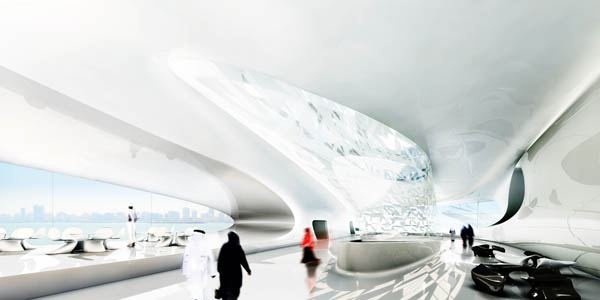

zaha hadid bahrain museum 02 Zaha Hadid Bahrain Museum of Art 03

Concept Design of Bahrain Museum of Contemporary Art:

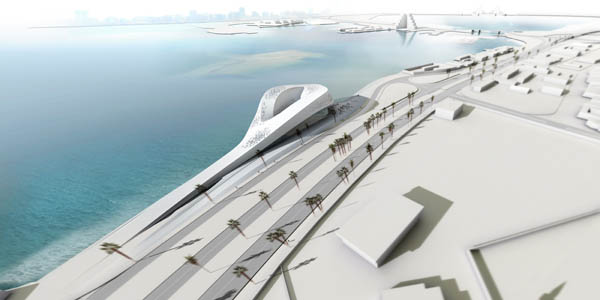

The enigmatic volume emerges from a narrow coastal land stripe at the Gulf of Bahrain. Describing a gentle curve while gradually rising from the ground a volume is formed that bends slightly and reaches over the water towards Manama. The building appears mystically floating above a coastal landscape. Public fields flow around the sculptural mass of the museum, underlining its presence with curvy-linear lines echoing the contours of the volume. The overall dynamism and fluidity of the elongated form support the emphasis on movement through and around the museum.

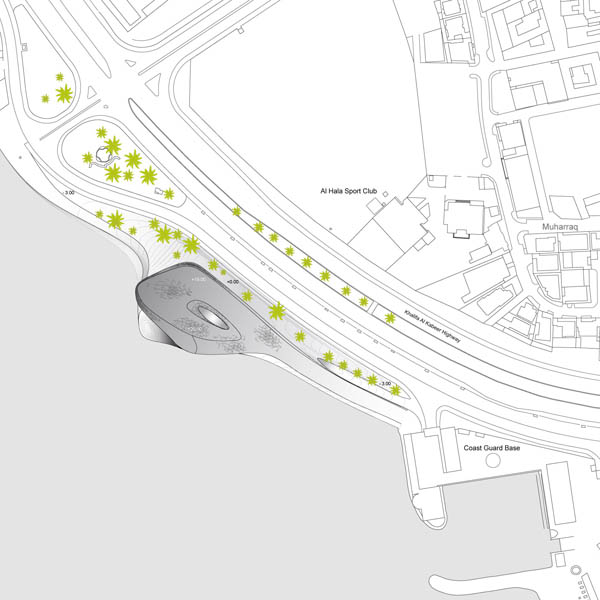

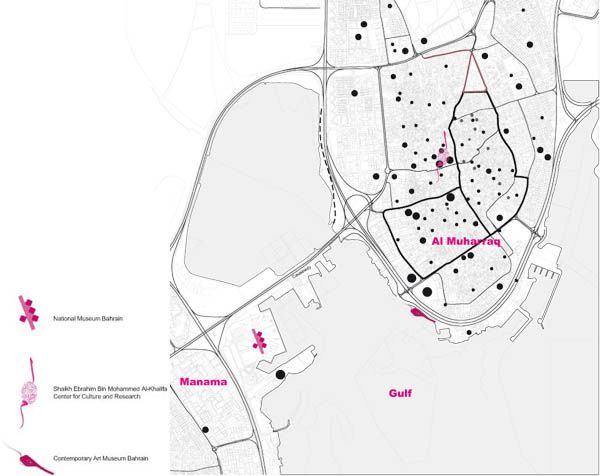

Site : (Al-Muharraq, Kingdom of Bahrain)

Bahrain Museum

Bahrain Museum

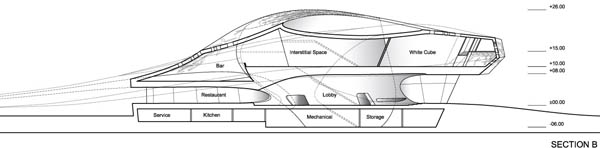

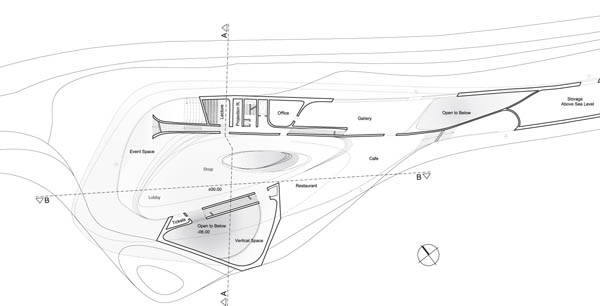

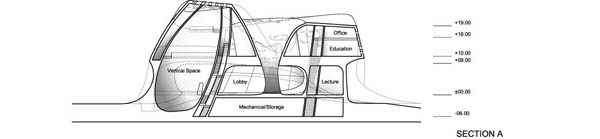

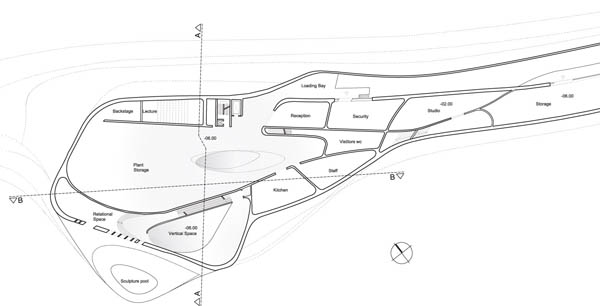

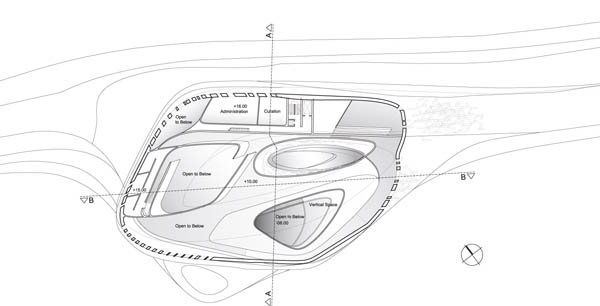

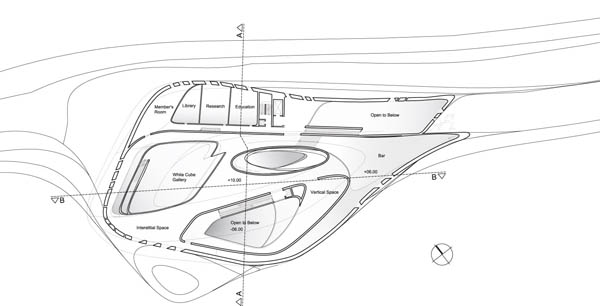

Plans & Sections :

Bahrain Museum

Bahrain Museum

More Images:  Click on image to Enlarge

Bahrain Museum Bahrain MuseumBahrain Museum Bahrain Museum

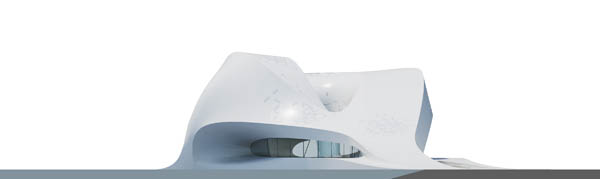

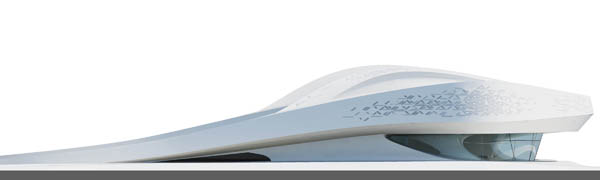

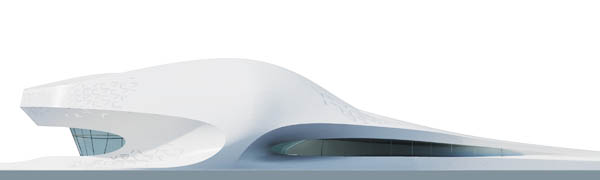

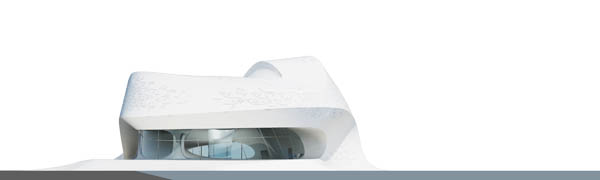

Elevations

Bahrain Museum

Bahrain Museum

Bahrain Museum

Bahrain Museum

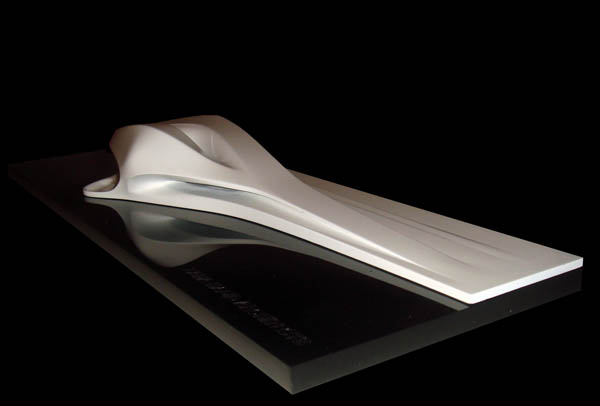

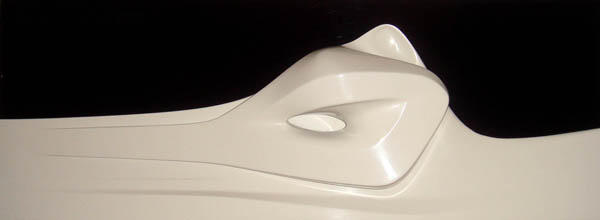

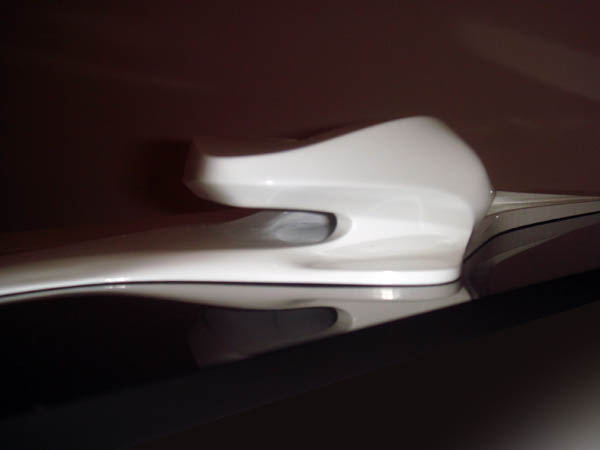

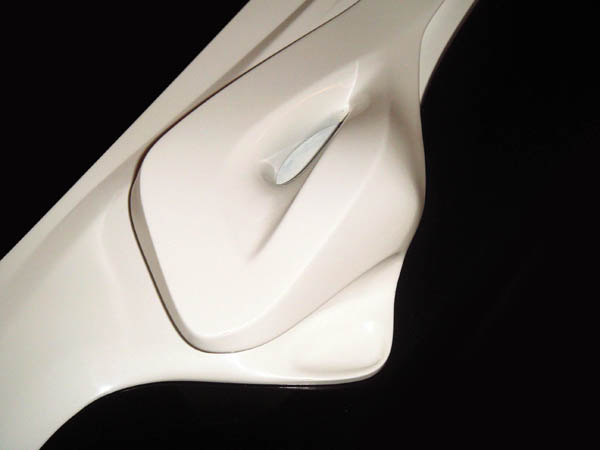

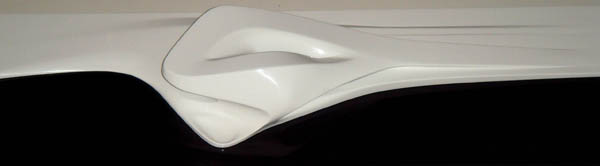

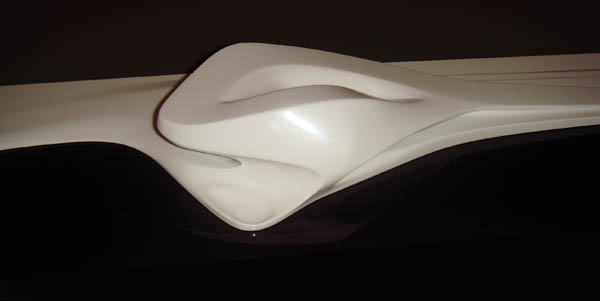

Model Images:

Project Info:

  • Project name: Bahrain Museum Of Contemporary Art, 2007-2012
  • Loction: Al-Muharraq, Kingdom Of Bahrain
  • Client: H. H. Shaikha Mai Mohammed Al Khalifa Culture & National Heritage Sector (Bahrain)
  • Area: 33414 M² Site, 10000 M² Internal Floor Area
  • Architect: Zaha Hadid Architects
  • Design: Zaha Hadid With Patrik Schumacher
  • Project Architect: Elke Scheier
  • Site Supervision Team: Anja Simons, Paolo Matteuzzi, Mario Mattia
  • Project Team: Gerhild Orthacker, Jimena Araiza, Susanne Lettau, Hee Seung Lee, Alexander Janowsky
  • Structural: Bollinger + Grohmann
  • Lighting: Arup Lighting (London) Andrew Sedgwick, Jeff Shaw
  • Visualisation: Moka-Studio
