Underwater City “Seascraper” 3D Printed from Recycled Trash | Vincent Callebaut

Underwater City

Underwater City Seascraper 3D Printed 01

Underwater City Seascraper” is an eco-friendly architectural concept using 3D printing technology.

Vincent Callebaut proposed an Underwater city “Seascraper” for “climate change refugees”, 3D printed from Recycled Trash taken from the ocean’s floating garbage patches.

This eco-friendly Underwater City Seascraper” also known as a waterscraper is the latest in a series of conceptual projects by the Belgian architect Vincent Callebaut, He has developed plans for a city of futuristic ocean buildings made from 3D-printed plastic waste which extend 1,000 metres below the water’s surface.

Underwater City Seascraper 3D Printed 02

From the architect:

My name is Océane. I’m 15 years old. I’m an aquanaut teen. I was born in immersion in 2050 in an underwater farm called “Aequorea” off the coast of Rio de Janeiro. Bio-inspired, the farm draws its name from a bioluminescent, light-emitting jellyfish characterized by its articulated, webbed tentacles. These tentacles enable it to swim and ensure its stability, while producing its own energy.

Underwater City Seascraper 3D Printed 03

My grandparents are oceanographers and architects. For the past 50 years, they’ve been participating in the collaborative construction of Aequorea. It’s a genuine underwater village printed in 3D from algoplast, a composite material they invented that mixes algae with garbage from the 7th continent. You know, the 7th continent? That infamous soup of plastics formed at the beginning of the century in the heart of the five main ocean gyres, where the Coriolis effect causes the currents to swirl.

Underwater City Seascraper 3D Printed 04

In the 20th Century, on Earth, every human being was producing up to ten times their weight in garbage annually. Two hundred and sixty-nine million tons of plastic waste with a life expectancy of a thousand years were thus produced every single year, and more than 10% of it were ending up in the oceans.

Underwater City Seascraper 3D Printed 05

My grandmother explained to me that, geopolitically, the 7th continent didn’t belong to any state. It was indeed located in international waters. Through negligence, no one wanted to commit to cleaning those 27 million tons of plastic waste trapped by the sea currents in the heart of their vortex. The oceans, which cover 71% of the surface of our blue planet, had become the dumping ground of humanity, she told me.

Underwater City Seascraper 3D Printed 06

Well, my grandparents, together with a community of scientists, decided to extract value from this disgusting soup of petroleum-based waste by recycling it. They formed an NGO to defend an ethical approach to the oceans. Aboard their weird ships inspired from the Klein bottle, they tirelessly sorted and crushed into granules bottles, cans, bags and other types of packaging. They filtered the microparticles suspended at depths of 10 to 30 meters (30 to 100 feet). Inside moon-crescent-shaped floating workshops and fab labs, they mixed this raw material with an emulsion of gelling algae, to extrude it in the form of eco-friendly filaments. Those reels of eco-friendly filaments were then used by 3D architectural printers to reinvent naval construction. As soon as 2015, they began the repurposing of plastic waste dumped by the People of the Land into impervious, durable materials.

Underwater City Seascraper 3D Printed 07

When my grandfather tells me about his terrestrial way of life of the time, it seems totally preposterous today. The People of the Land, those supposedly, self-proclaimed Homo Sapiens, took two centuries to understand that they were living on finite territory with limited natural resources. They were consuming the city like a commodity, rather than a common good that should be nurtured in symbiosis with nature. They were suffocating from inhaling urban smogs, the infamous photochemical clouds caused by pollution. Without knowing it, they were ingesting plastic infesting the food chain. And because of overfishing, they had almost emptied the supply of fish in the oceans. In this December month of 2065, it’s still hard for me to believe how carelessly the People of the Land mortgaged the fate of future generations.

Underwater City Seascraper 3D Printed 08

It is true that, since the COP21 which took place in Paris in 2015, and the COP22 which took place in Marrakech in 2016, tensions had risen between the Western governments and the African countries, the former denying the latter the right to reproduce the fossil-fuel-based energy model that had enriched them so much. Luckily, the Archibiotic boom changed the game. This biomimetic type of architecture — using advanced renewable energies together with information and communication technologies (NTIC) — gradually offered energy independence to each state in the world. Oil conflicts — that obsolete energy — thus died down quietly.

Underwater City Seascraper 3D Printed 09

Faced with climate change and the rise of water levels, a new civilization emerged: the People of the Seas. Once their lands and islands were underwater and salinized, a large portion of the 250 million climate refugees got involved with interdependent NGOs like the one my grandparents created. Together, they invented new underwater urbanization processes that were energy self-sufficient, recycled all waste, and fought ocean acidification. Indeed, even if the oceans absorbed 22 million tons of carbon dioxide from the atmosphere every day, mankind with its excesses of CO2 emissions had saturated them, and their pH had destabilized all ecosystems.

Underwater City Seascraper 3D Printed 10

The People of the Seas’ objective? To explore the abyssal zones in a respectful way, in order to speed innovation and to democratize new renewable energies — by definition inexhaustible — massively. This community fought the capitalist frenzy rubbing its hands at the idea of plundering the last petroleum, ore and methane resources through drilling and fracking natural habitats at great depths. To develop new scientific, energy, pharmacological and food resources unsuspected until then: such was their credo in 2015. People of the Seas with their blue economy were thought of as crazy! In times of obsolescence, people much preferred to dream and escape to Mars after having plundered everything on Earth!

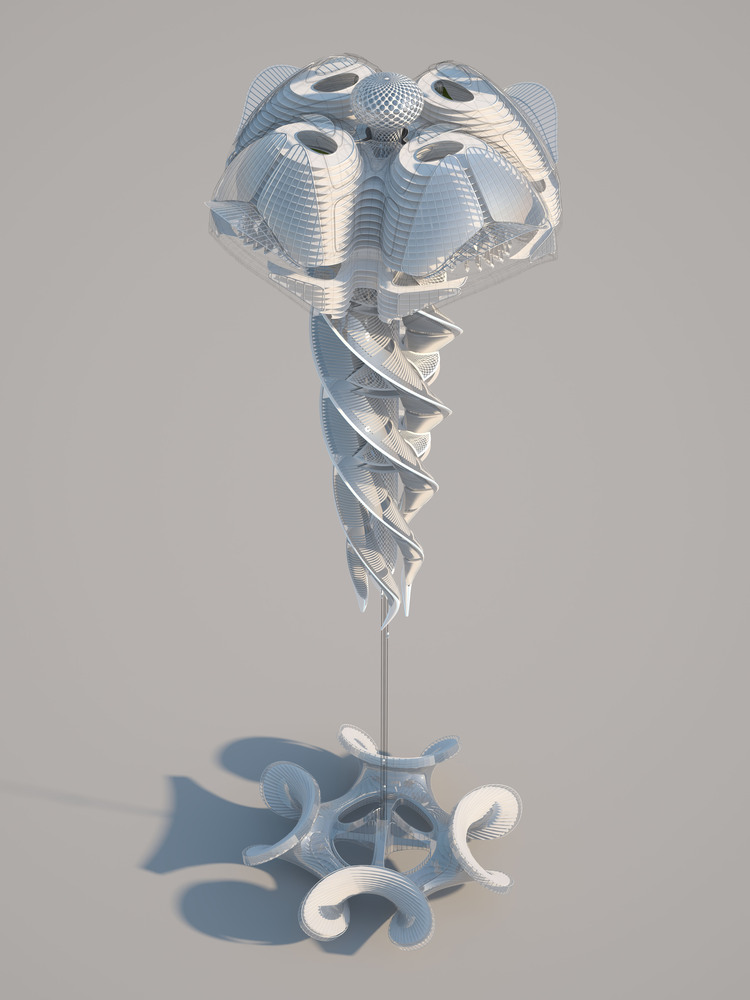

For the past 50 years, these inhabitants of the sea managed to revolutionize the way we live together through environmental resilience and intensive energy transition. They won the challenge of recycling 100% of the 7th continent’s plastics into a sustainable habitat. Since then, the Aequoreas continue to self-build through eco-friendly, natural calcification, in the same way sea shells do — by fixing the calcium carbonate contained in water to form an external skeleton. These are genuine blue carbon wells shaped like twisted towers 1000 meters (3280 feet) deep. By using aragonite (which has a high carbon component) as the construction material for its transparent façades, an Aequorea can fix 2,500 tons of additional CO2 per square kilometer (250 acres) annually.

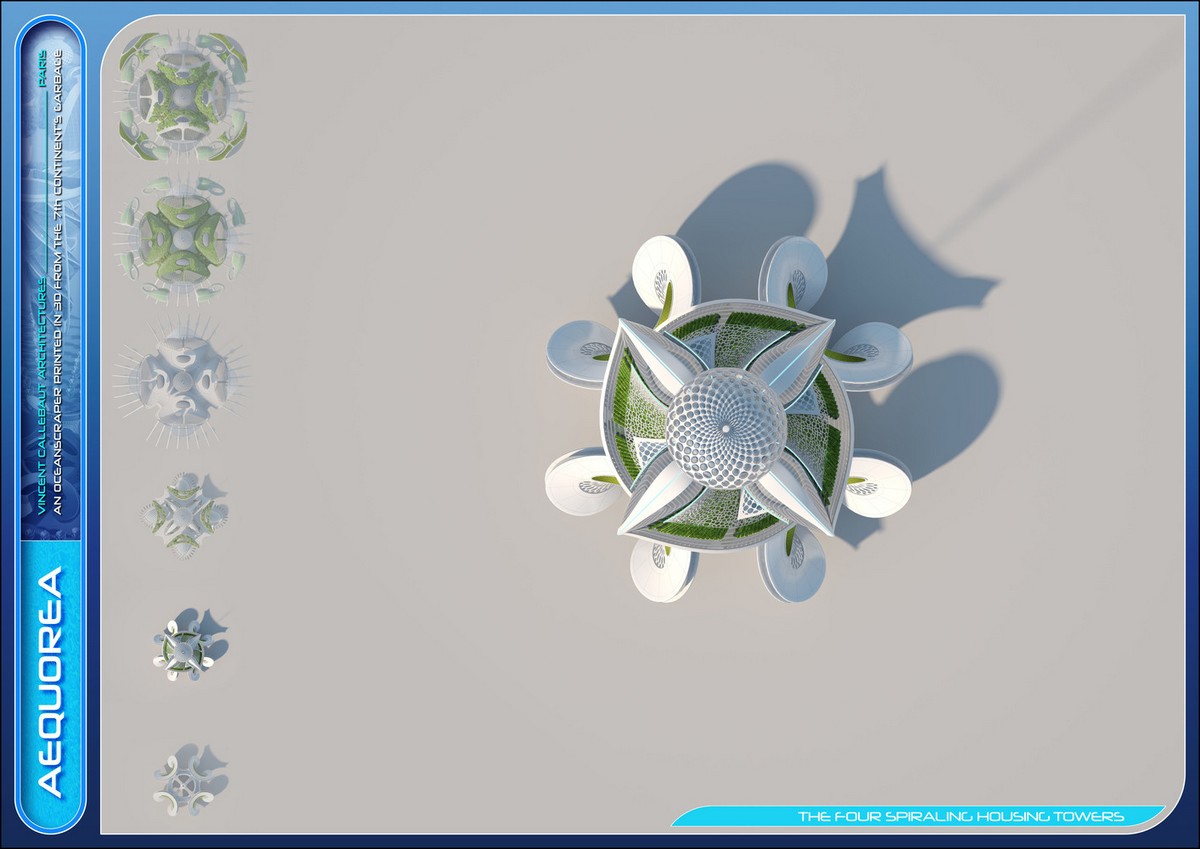

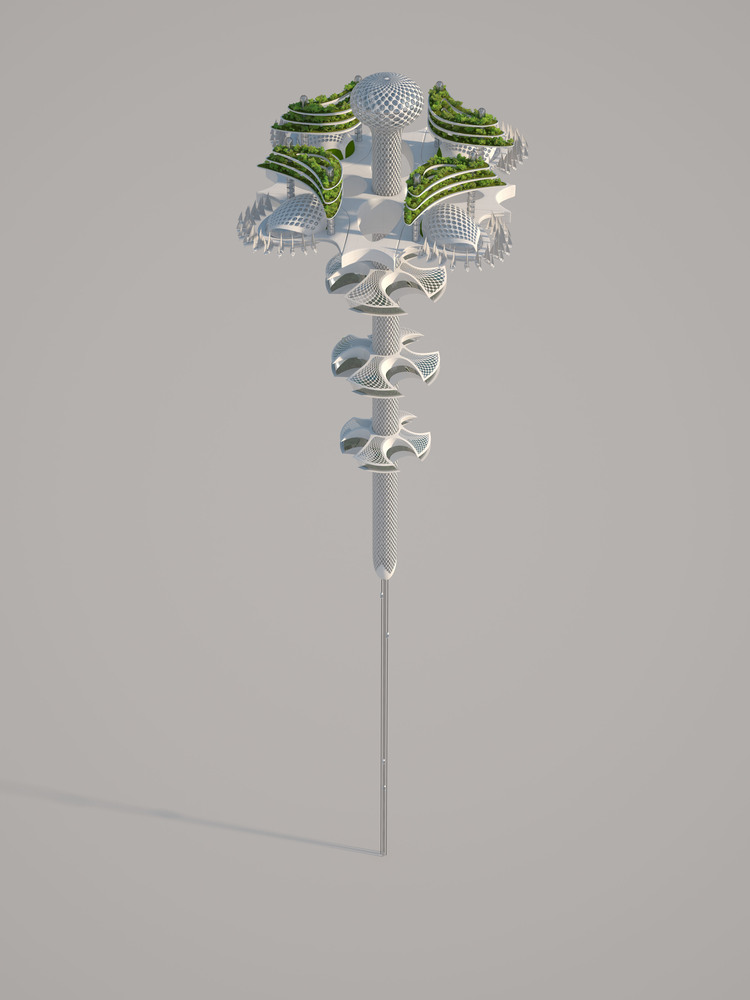

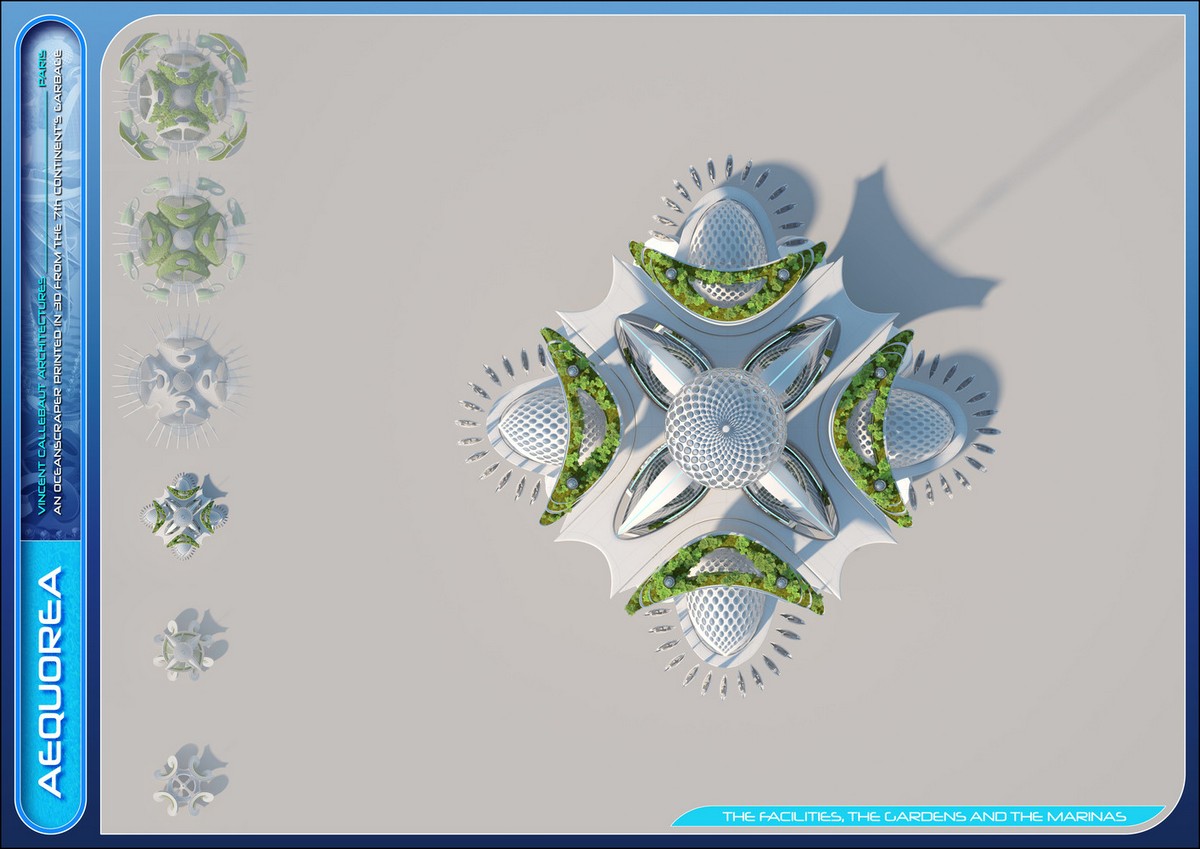

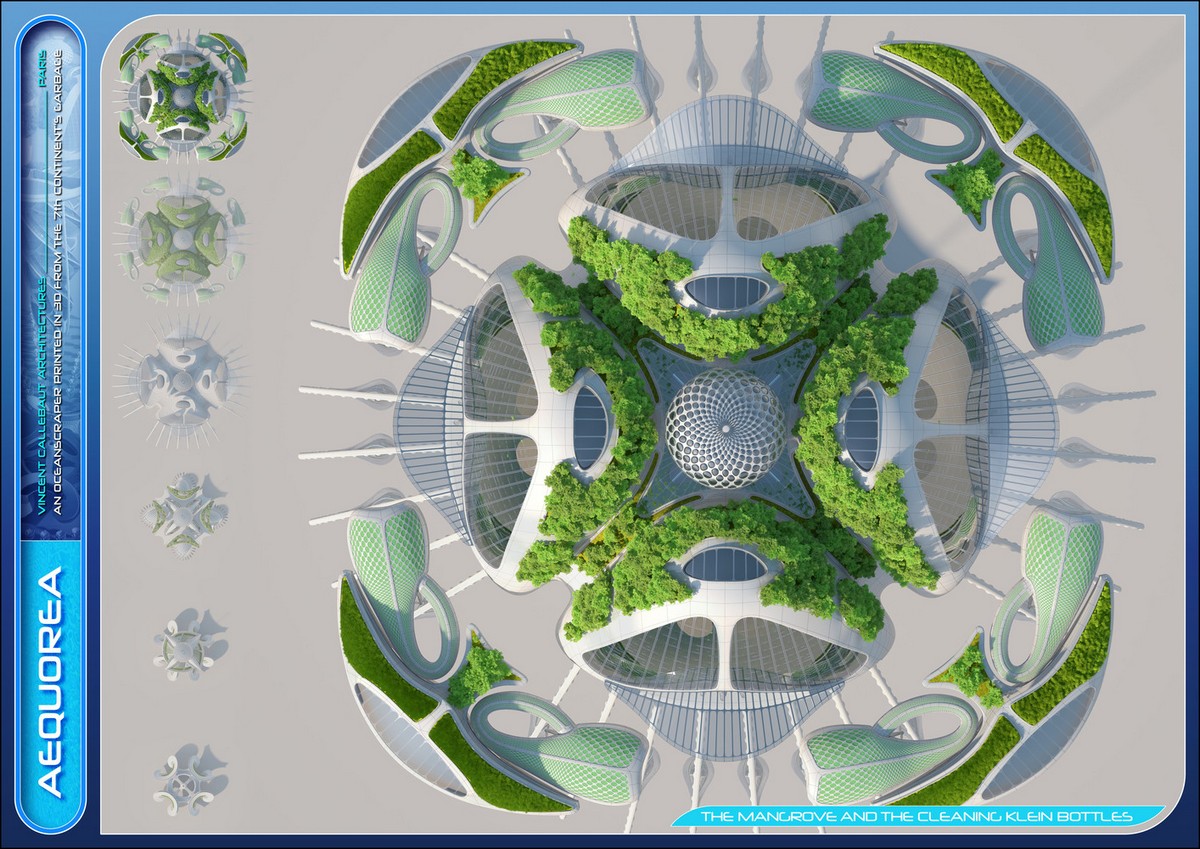

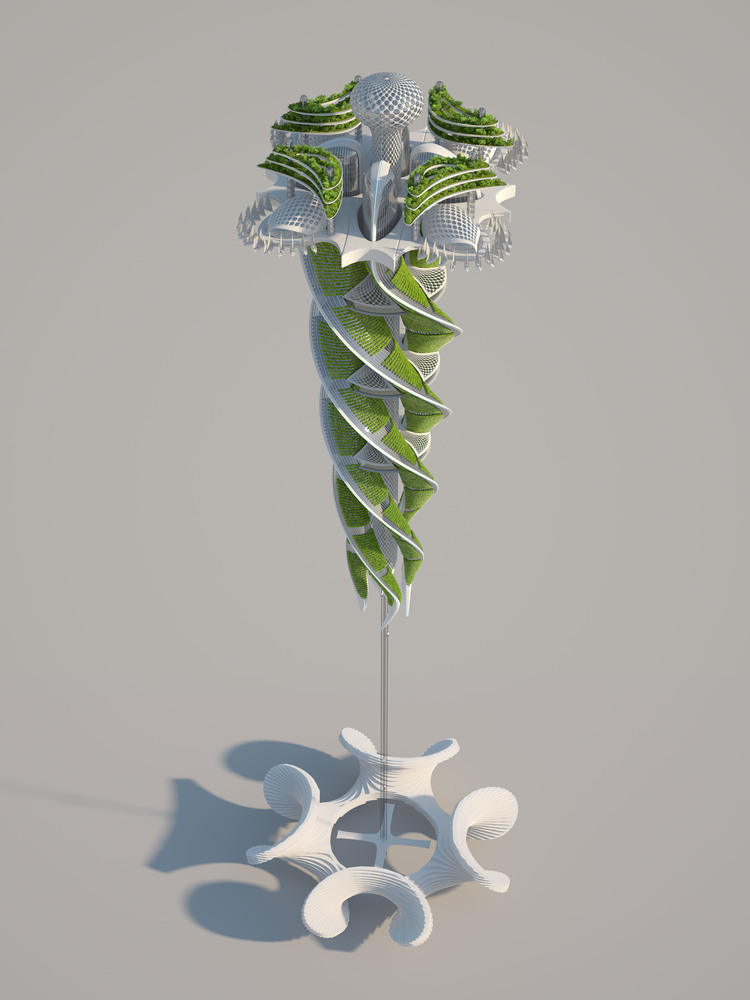

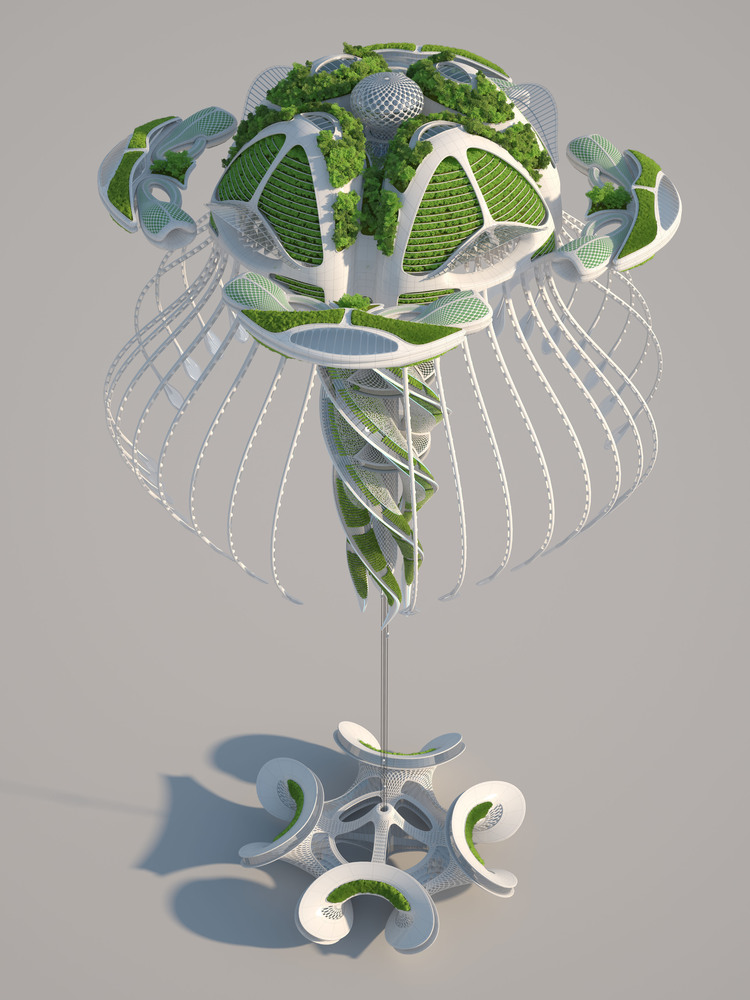

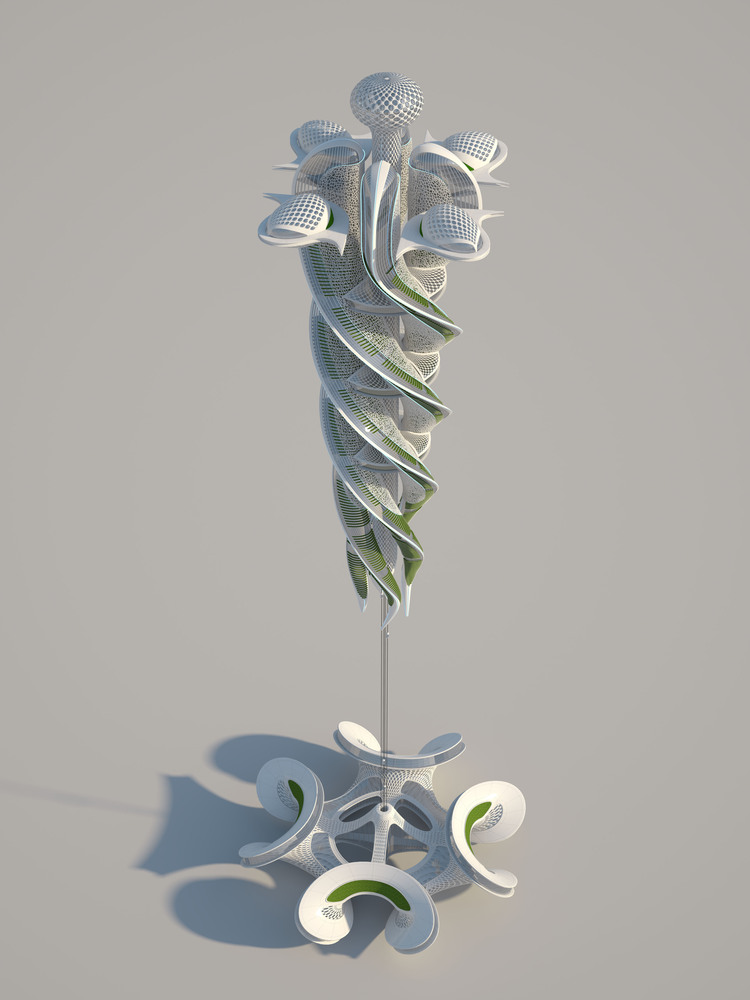

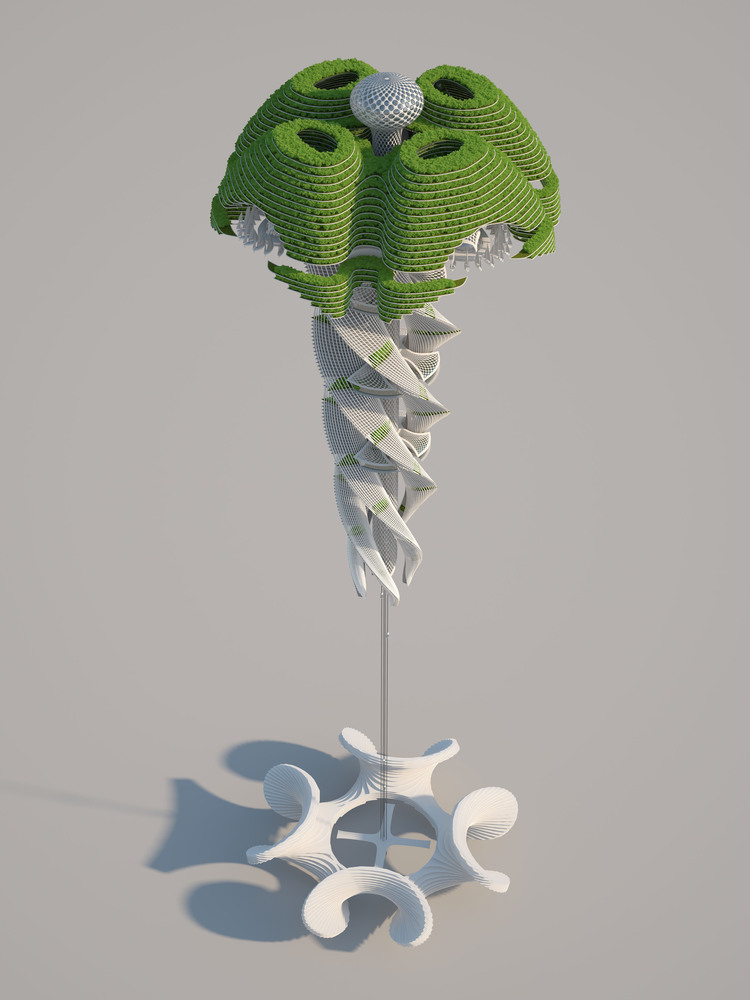

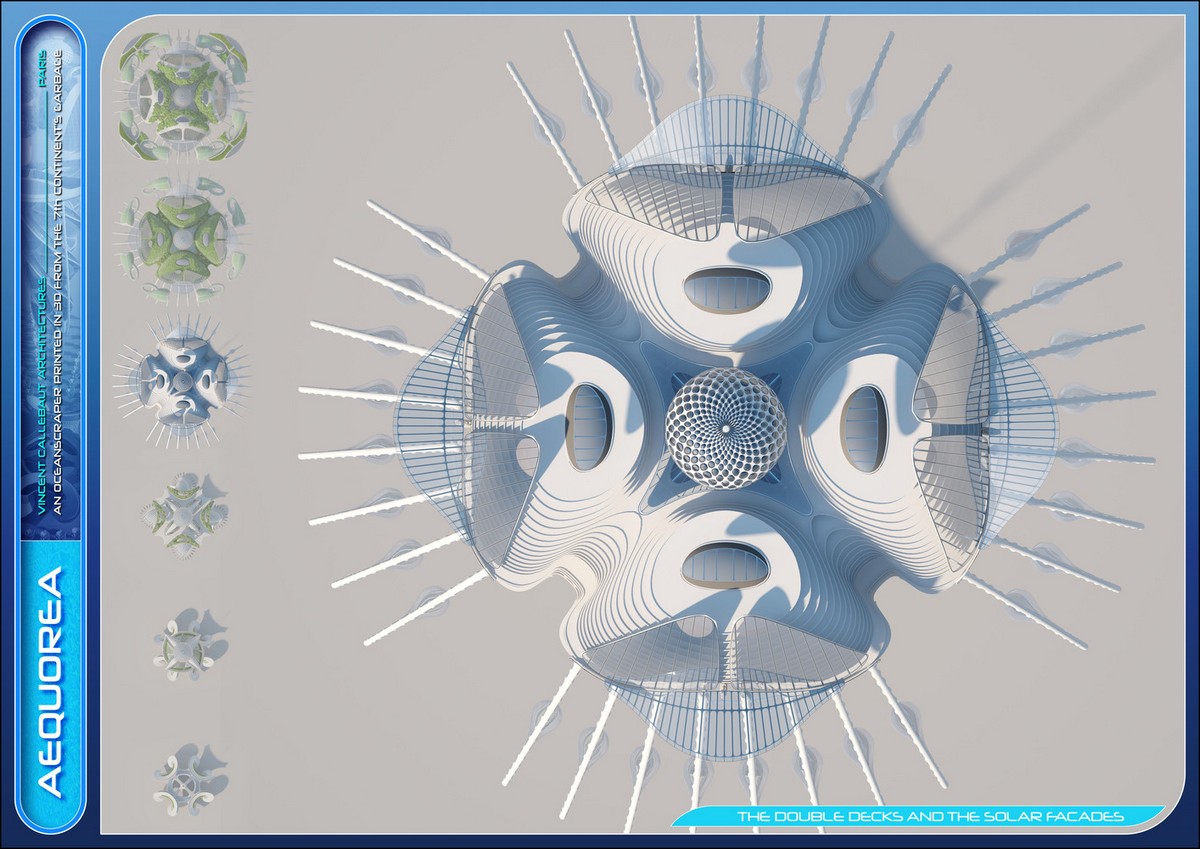

Each Aequorea village can welcome up to 20,000 aquanauts. Their main access is on the water surface, through four marinas covered with a mangrove rooted on a floating dome 500 meters (1640 feet) in diameter. Modular living, co-working spaces, fab labs, recycling plants, science labs, educational hotels, sports fields, aquaponic farms and phyto-purification lagoons stack up layer by layer. The twisting of the towers is ultra-resistant to hydrostatic pressure. Its geometry allows it to fight marine whirlpools and thus reduce motion sickness. Its double shell accommodates the ballasting. Once filled with seawater, the ballasts lower the Aequorea’s center of gravity to counteract the Archimedean buoyancy. They guarantee stability in the event of a storm or an earthquake. The double shell’s thickness increases from the sea surface downwards, to compensate for the strain caused by the increase in pressure.

Let’s jump in the water! I’m going to explain to you everything we the People of the Seas have invented in the heart of the ocean. There’s no longer any need for scuba tanks to breathe underwater: put on your gill mask, designed to capture water and extract oxygen molecules; your microbead suit, like a dolphin skin; and your carbon fiber monofins inspired by whale tails!

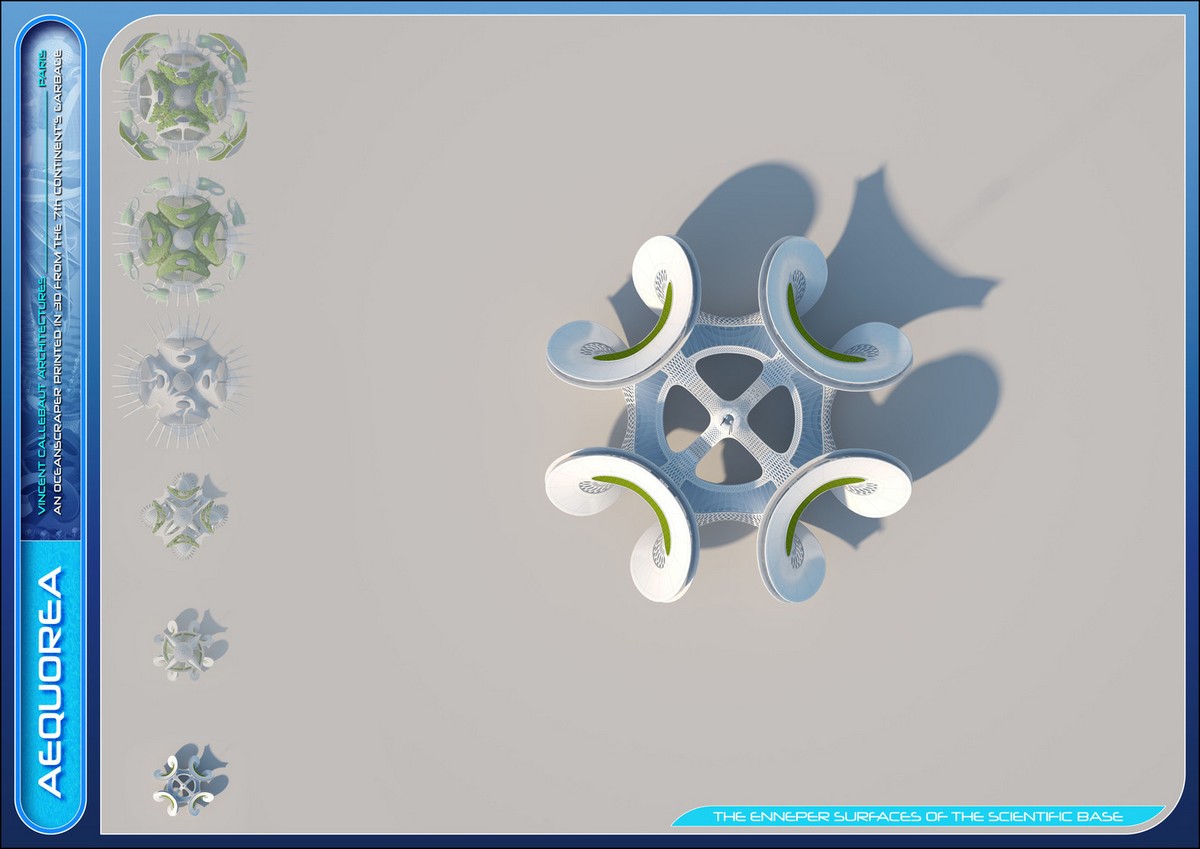

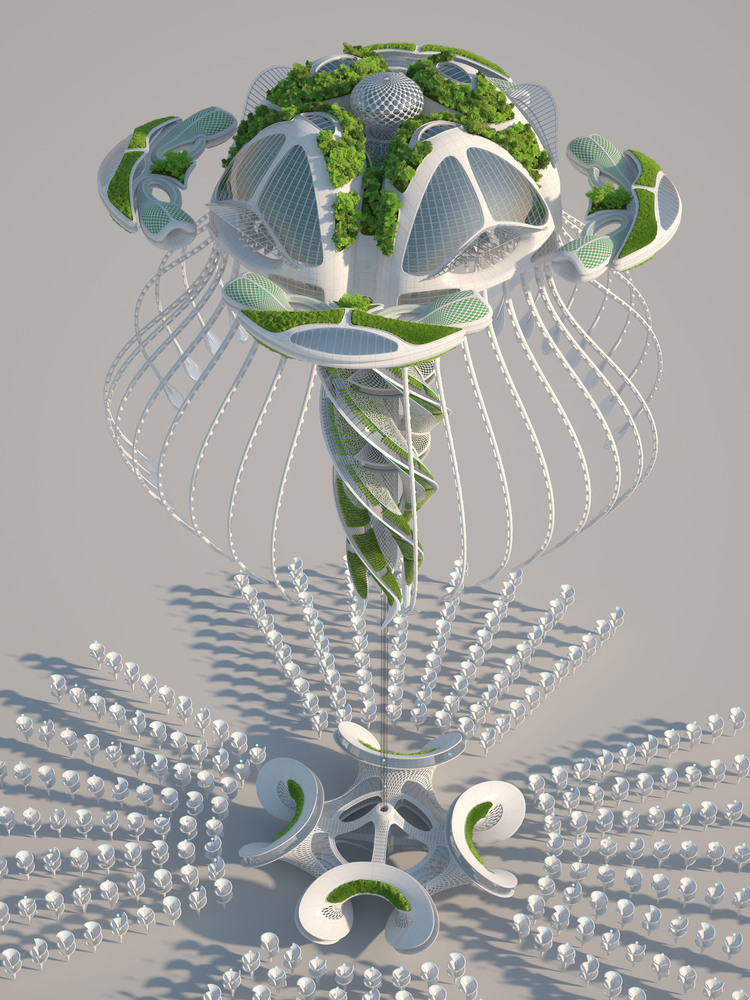

There’s no more need for coal, oil, gas or nuclear energy to get light: we reproduce bioluminescence in the double glazing of our apartments, thanks to symbiotic organisms that contain luciferin which emits light through oxidation. On the ocean floor, a field of water turbines, shaped like volutes and laid out in a star pattern around an abyssal scientific base, turn the sea currents into electric energy. An ocean thermal energy conversion (OTEC) power plant completes the panel of energy supply. Located in the central vertical axis, it uses the difference in temperature between the warm surface water and the cool water pumped deep down to produce continuous electricity.

In order to produce drinking water and fresh water for aquaculture, the OTEC power plant uses the in-depth pressure to counteract the osmotic pressure, and to separate the water from the salt via a semipermeable membrane. Air is renewed either naturally by convection through wind chimneys innervating the four branches of each tower’s twist, or by the oxygen station via seawater electrolysis.

For heating and climate control, we no longer use fossil fuels. Rather, we use microalgae grown in aquarium walls, which absorb the carbon dioxide produced by people’s breathing. These green-algae-based bioreactors also recycle the liquid or solid organic waste, and produce energy through photosynthesis and biomethanation.

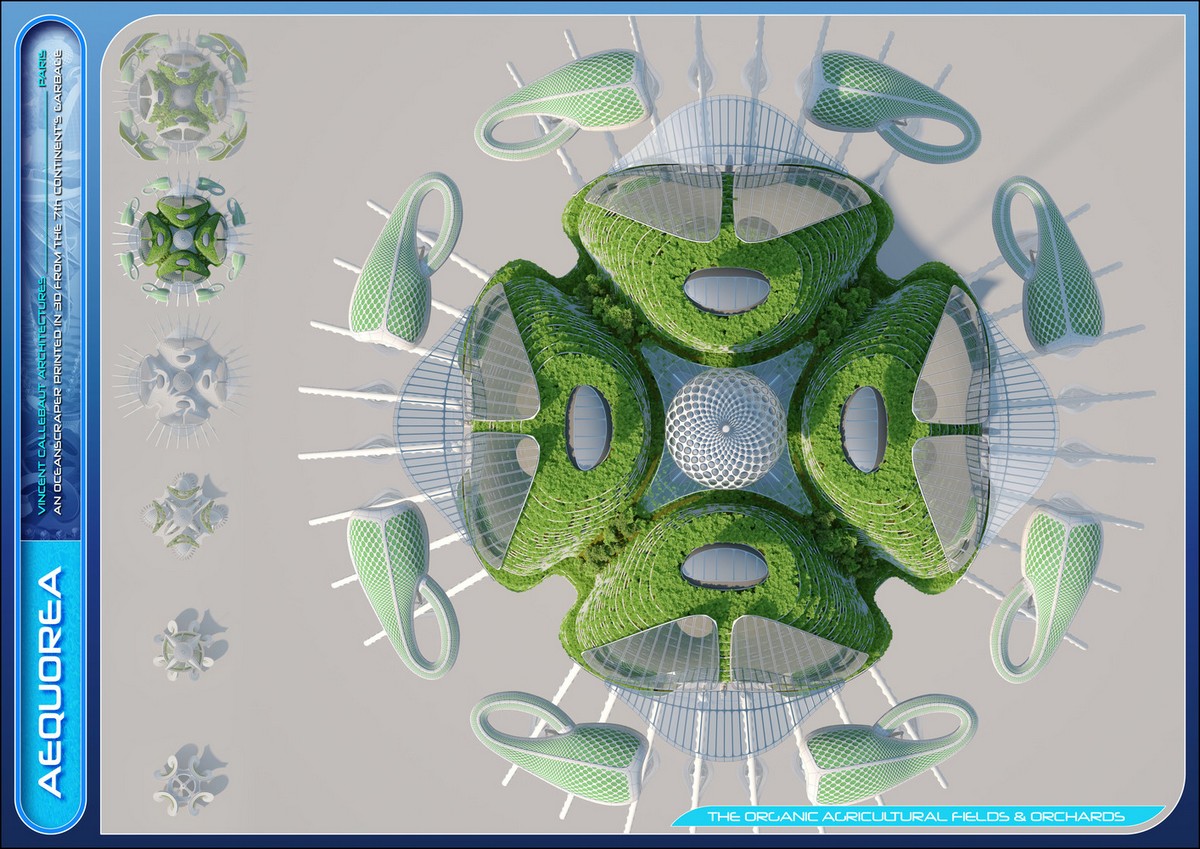

For food, we grow algae, plankton and mollusks rich in minerals, proteins and vitamins. Coral reefs are harvested on balconies, thus becoming nurseries for the aquatic fauna and flora. On the surface, the four large floating conch-like structures house community horticultural greenhouses, organic farming fields, orchards and vegetable gardens. We live from sustainable fishing in our apartments’ garden, i.e. the ocean. The word “packaging” has disappeared from our vocabulary: all our food is distributed in bulk, in reusable and biodegradable containers.

We move around by ship or submarine, thanks to the algae fuel or hydrocarbons we produce free of greenhouse gas emissions. We make our biofuels by extracting hydrogen and carbon from seawater through osmotic pressure, then synthesizing them. This process allows us to also pump the carbon dioxide out of the oceans, thus neutralizing the acidification process that had been destroying our ecosystems such as the Great Barrier Reef.

We study the molecules of living organisms to heal ourselves. We’ve understood the multiplication of cancer cells thanks to the starfish. We’ve developed the first tri-therapy to fight AIDS thanks to the herring. We invented the new generation of pacemakers by decrypting how the humpback whale’s heart works.

We only use bio-based materials to lay out and furnish our apartments. To put them together, we created an eco-friendly glue synthesized by isolating the protein of a mussel capable of clinging to any underwater support in rough conditions. The apartments’ partitions are made of chitin that is also synthesized — a molecule making up the shell of crustaceans such as lobsters. Finally, for floor covering, we took inspiration from the antibacterial denticles of the Galapagos shark’s skin, thus eliminating the need for toxic detergents.

Oh, I almost forgot to tell you about the most important change! We went through a real economic Big Bang, because we also created a currency specific to marine urbanism: the Aequo. In 2050, just before I was born, my parents voted in favor of a referendum for a bill to implement the universal revenue. In this vertical village, the economy is horizontal! No more bosses! No more employees! We’re now all eco-conscious individual entrepreneurs. We’ve become actors of a blue, fair, circular and interdependent economy again. Man and nature are back at the heart of all concerns. We didn’t save capitalism, but we keep saving the climate!

Never forget this: oceans produce 50% of our planet’s oxygen. They are its most active lung! It was really worth cleaning them, and fighting their acidification, thus re-enchanting our living together — don’t you think?
