Oenothera Bridge by Marius Cernica enriching Vienna

Oenothera Bridge 01

Beyond the motive of implementing  the Oenothera Bridge by Marius Cernica, is to enrich the presence of a new sculpture in the old European context which is not far from the historic center of Vienna.

Oenothera Bridge 02

The proposed sculpture  Oenothera Bridge draws a new contemporary iconic bridge and is formed by a series of arcs that cross the channel from one side to another sculpting the global form, connecting between them at specific points.

Oenothera Bridge 03

Each arc of the Oenothera Bridge is designed to be composed of several prefabricated concrete sections which are then assembled at the construction site. To cover a span of about 30 meters of the sculpture design, the arches have a height of about 80 centimeters in sections at the base, where the forces reach the utmost values ​​and about 30 cm sections of the middle part, where the compression forces are at its lower values.

Oenothera Bridge 04

The metal  Oenothera Bridge sculpture that supports and gives the final form to the bridge, is hung to the elements above, the fixed points around the sculptured bridge are those that affect the supporting arches above and the two sides that make up, in the formal continuity that distinguishes the project, the end surfaces decking and railings.

CrossSection03

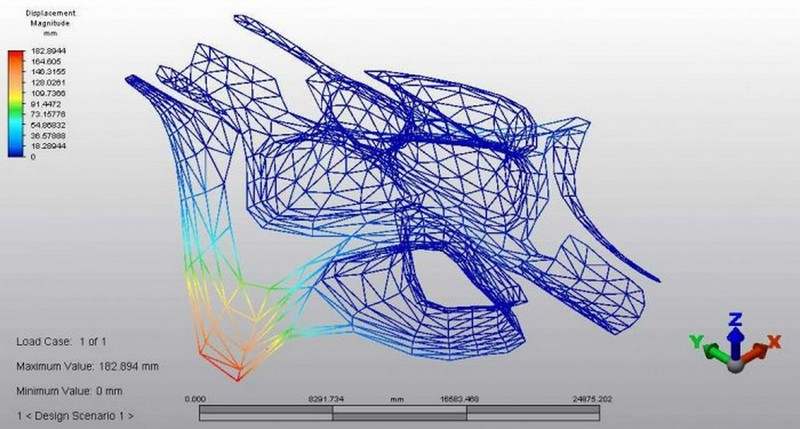

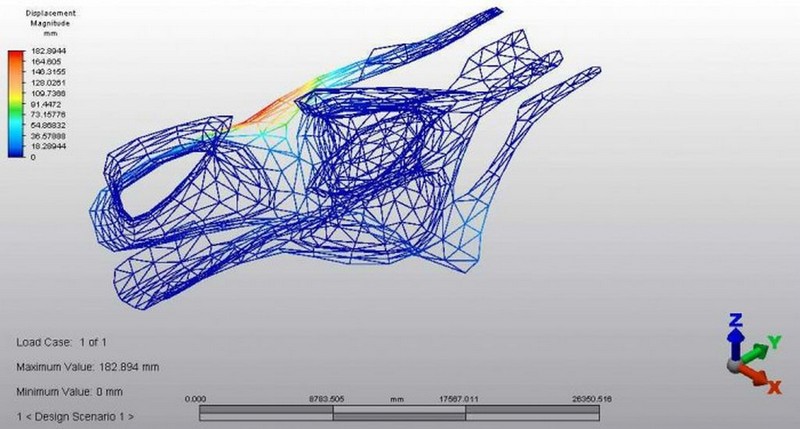

Computational analysis was carried out in order to check how all the interconnected elements of the sculpture react to internal and external forces. In addition, while maintaining the principle of the sculpture elegance, the design of the sculptured bridge was built in a variety of functions arranged on the deck, two small cafeterias & a storage room that would emanate life to the public space of the sculptured bridge.

Oenothera Bridge 06 Oenothera Bridge 07

Project Credits

Project name: Oenothera Bridge
Architect: Marius Cernica
School: Masterclass Zaha-Hadid, University for Applied Arts, Vienna, Austria
Advisers and critics: Klaus Bollinger, Jens Mehlan,  Robert R. Neumayr, Andrei GHeorgh
